Chelsea Barracks - Phase 4

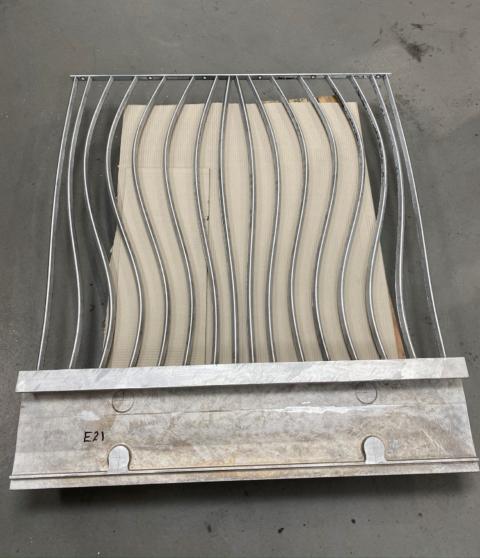

AATi raw casting
AATi raw casting

AATi manufactured all cast balustrades, Juliet balustrades, and feature handrails for the Chelsea Barracks phase 4 development. Situated in Belgravia, a highly coveted central London location, the Chelsea Barracks Development is bordered by Sloane Street and King’s Road. The site was purchased by Qatari Diar in 2007 for £959 million. The development will consists of 448 residential units in total well as a new leisure centre, NHS medical centre, community centre and local amenities. The project achieved the prize of most sustainable development in Europe in 2021 as well as being only 1 of 16 developments globally to achieve LEED platinum certification for green building. AATi worked with the metalworks subcontractors, the Main contractor Multiplex, as well as world renowned architect Eric Parry Architects.

18 individual casting designs in total were developed in conjunction with our in-house design team. Geometry was received by the architect before it was adapted for castability. AATi offers a broad range of previous experience working on high-end architectural developments and can assist with previous knowledge on methods for assembly, fixing and finishing. The project involved some geometry which does present some difficulties when casting. Making use of previous experience and verifying methodology through the use of casting simulation AATi managed to successfully deliver to schedule and to the highest standard controlled by FMDC Ltd. The castings were produced in cast aluminium to BS EN 1706 grade EN AC 44100. The parts were coated in PPC paint.

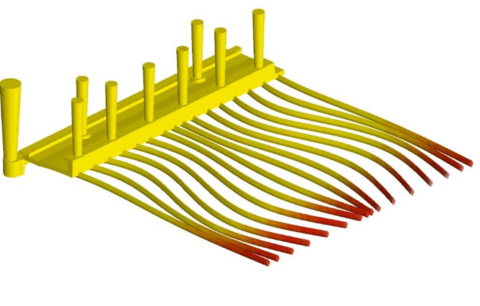

Casting Simulation
Casting Simulation

The main design of balustrade featured long sweeping spindles with a hidden fixing system on the rear of the panel. The nature of the design created a casting challenge due to contraction and thin, delicate design aspirations. Successful planning and method development resulted in AATi achieving a <1% overall reject rate.

The project was delivered on schedule with a total of 360 panels manufactured as well as a unique handrail feature for use on a side of the building incorporating shaped glass balconies.

See below for a link to the Chelsea Barracks website where we will be featured in the near future as part of their ‘Craft series’ including a short film of how AATi delivered from design to installation.

https://www.chelseabarracks.com
